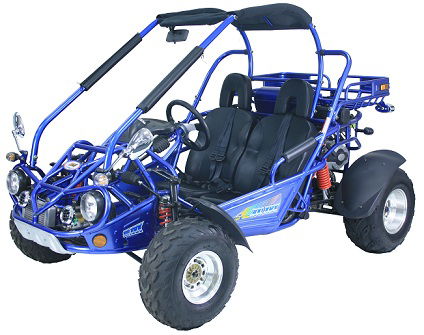

300cc XRX Go Kart

300cc XRX GO KART

ENGINE

Engine type: 4-stroke, single cylinder, water cooled

Displacement: 300cc

Max HP: 17.4hp/6500rpm

Max torque: 16 lb ft/5000rpm

Bore x stroke: 2.85x2.63 inches

Max speed: 50 mph

Climbing ability: 18 degrees

Ignition: C.D.I

Starting system: Electric

Battery: 12V 10Ah

Carburetor brand: TK (Vacuum film)

Engine oil: SAE 15W-40

Gear oil: MoS2&W-2WD-4D

EPA certificated

GENERAL INFORMATION

Clutch: Automatic CTV with reverse

Driveline / Driving wheel: Chain+Shaft / Dual wheel drive

Suspension F / R: Double A-arm / Independent Swing-arm

Brakes, F / R: Both hydraulic brakes, Disc

Tires, F / R: 20x7-8 / 22x10-10

Fuel capacity: 2.25 gal

Weight, G.W. / N.W.: 705 lbs / 617 lbs

Max load: 500 lbs

DIMENSIONS

Wheelbase: 66.1 inches

OA L x W x H: 90.5 x 53.1 x 57.1 inches

Height to seat: 13.8 inches

Min ground clearance: 8.5 inches
