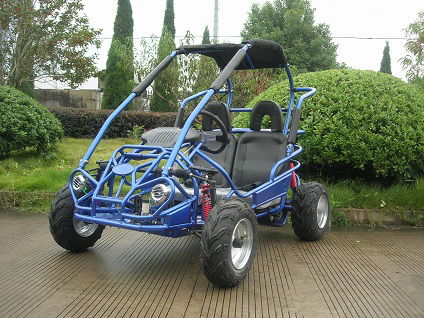

200cc Rally Force Go Kart

Engine Information

EPA certificated

Engine type: 4-stroke, single cylinder, air cooled

Displacement: 200cc

Max HP: 6.3hp/3600rpm

Max torque: 9.6 lb ft/2500rpm

Bore x stroke: 2.6 x 2.1 inches

Max speed: 31mph

Climbing ability: 12 degrees

Ignition: C.D.I

Starting system: Electric / Pull backup

Battery: 12V 9Ah

Carburetor brand: JF (RX)

Engine oil: SG15W-40

General Information

Clutch: Automatic CTV

Driveline / Driving wheel: Chain / Dual wheel drive

Suspension, F / R: Double A-arm / swing-arm(Double Oil Damped Shock)

Brakes, F / R: No / Hydraulic brake, Disc

Tires, F / R: 16x6-8 / 16x7-8

Fuel capacity: 1 gal

Weight, G.W. / N.W.: 386 /330 lbs

Max load: 400 lbs

Dimension Information

Wheelbase: 48.4 inches

OA L x W x H: 67x43.3x51.2 inches

Height to seat: 10.2 inches

Min ground clearance: 2.8 inches

Pedal to seat back distance: 31.5'' to 37''
