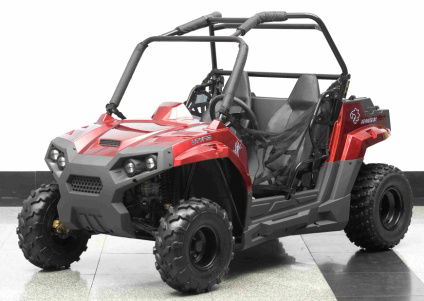

150cc Lightning UTV - UTV170

150cc Lighting Quad UTV Comes With

Headlights and Taillights

Seat Belts

Horn

Turn Signals

12" Shocks

Larger rear tire

SPECIFICATIONS

Engine type: CVT, SINGLE CYLINDER,4 STROKE
Displacement: 149.6CC
Compression ratio: 9.5:1
Ignition: CDI
Cooling system: AIR +OIL COOL
Starting system: ELEC
Gears: AUTOMATIC W/REVERSE
Vehicle dimension(L×W×H): 88.6"*48.0"*55.0"
Cargo bed(L×W×H): 16.1"*33.5"*8.7"
Wheelbase: 65.0"
Front tread: 40.2"
Rear tread: 38.0"
Ground clearance: 6.0"
Seat height: 19.7"
Dry weight: 540LBS
Fuel capacity: 9.5L
Cargo bed load capability: 22.0LBS
Towing capability: N/A
Final Drive: CHAIN
Brake system: front/rear FOOT ACTIVATED,
4 WHEEL HYDRAULIC DISC
Suspension: FRONT: SINGLE A-arm,
REAR:SWINGARM
Steering: GEAR BOX
Front tire size: 19*7-8
Front wheel size: 8*5.5
Rear tire size: 20*10-9
Rear wheel size: 9*8
Top speed: 55KM/H
Loading information: 8 UNITS/20",
18 UNITS/40",27PSC UNITS/40HQ
Packing Size: 90.2"*51.2"*33.7"
Waterproof: 7.9"
Max climbing gradient: 15°
Min operation temperature: -20(-4H)
Max operation temperature: 40(104H)
Max torque and rotate speed: 9.8N.m(4000r/min)
Rated power and rotate speed: 6.8kw(5500r/min)
